Tunable White Technology powered by the ELITE Platform provides advanced control over light color temperature, allowing seamless adjustment of luminaires through a wide range of sensor technologies and control systems. This flexibility enables the creation of highly adaptable environments tailored to the specific needs and functions of any space.

By supporting human-centric lighting design, this technology aligns with natural circadian rhythms—replicating the progression of daylight throughout the day. From cool, energizing tones to warm, relaxing hues, it helps regulate our biological clock, contributing to improved sleep patterns, enhanced mood, increased productivity, and an overall sense of well-being.

Engineered for both performance and visual quality, ELITE’s tunable white solutions maintain a high Color Rendering Index (CRI) of 90+ across the full tunable spectrum—from 6500K crisp daylight to 2700K warm ambient light—ensuring accurate color representation and consistent illumination at every setting.

The result is a dynamic lighting solution that not only enhances the visual experience of a space but also supports occupant comfort, health, and performance throughout the day.

Why choose Elite Lighting’s tunable white?

Tunable White is available in 2 different CCT range platforms:

 1) High Performance elite platform with a tuning range of 5000K to 2700K (TWH 50K-27K)

2) High Performance elite platform with a tuning range of 6500K to 2700K (TWH 65K-27K)

Elite tunable White technology can be supplied with a variety of dimming and control protocols include 0‑10V, ELDO10.1, DMX, DALI, BLE or LUTRON:

DIM10 (0‑10V 1% Dimming Standard). 0-10V dimming on either MVOLT 120, 277 or 347V. Dimmable down to 1% of initial lumens with 2 separate channel to control CCT’s and intensity independently.

ELDO10.1 (0‑10V 0.1% Dimming Standard). 0-10V dimming on either MVOLT 120, 277 or 347V. Dimmable down to 0.1% of initial lumens with 2 separate channel to control CCT’s and intensity independently.

DIMMING AND TUNING CONTROL SYSTEMS PROVIDED BY ELITE LIGHTING:

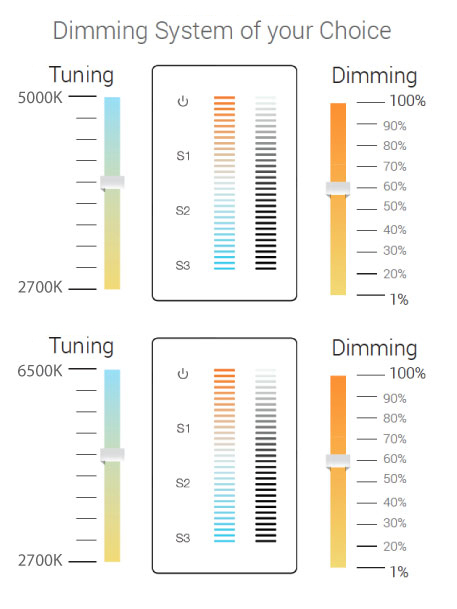

 ELITE-CONNECT 0‑10V. (EC-WC-TWH-HW-MVOLT) single gang box Hard Wired, Wall-Mount touch screen Controller to controls CCT Tuning and Intensity. (Order with only DIM10 Option)  Hard Wired Wall-Mount Controller easily controls CCT Tuning and Intensity through simple Touch Screen dual channel pad, provided by Elite Lighting. Ideal for classrooms, small offices, and healthcare patient rooms.  Compatible with variety of control methods and or daylight harvesting systems.

DMX (Digital Multiplex) –Available with two options: DMX-512: Standard DMX Controller and DMX-RDM: DMX Controller with Remote Device Management.

LUTRON –The T-Series driver provides smooth, flicker-free color changing and 1% dimming to dynamically transform any space. Compatible with Lutron GRAFIK Eye QS or GRAFIK Eye 3000 by using two GRX-TVI Lutron 0‑10V Dimming interfaces, one to tune and another control dimming. Also compatible with Lutron VIVE or Athena system by using modules per fixture.

BLUETOOTH / BLE– Dimming and CCT can be controlled, grouped, scheduled or placed in scenes! and or zones Via Cassambi Bluetooth 4.0 App by using an app running on smartphones or tablets.

DALI (Digital Addressable Lighting Interface) – Compatible with Digital Addressable Lighting Interface, available with DALI-2 and D4i standardizes option for intra-luminaire networks and communication. Dimmable down to 0.1% of initial lumens.

Creating Dynamic Spaces with Tunable White Lighting

Supporting the Way We Work, Connect, and Relax Throughout the Day

6:00 – 7:00 AM | Arrival + Morning Prep
The day begins with a soft, welcoming glow that eases occupants into the space. Lighting is set to a warm 2700K, inspired by early sunrise tones. Subtle amber accents are introduced to create a calm and comfortable atmosphere as the environment prepares for the day ahead.

7:00 AM | Morning Activity
As the space becomes fully active, lighting transitions to a slightly brighter warm-neutral tone around 2900K. This supports focus while maintaining a relaxed and inviting feel for morning routines.

12:00 PM | Midday Peak
At peak activity, lighting shifts to a cooler, more energizing white around 3700K. The space feels brighter and more vibrant, helping to enhance alertness and productivity while mimicking natural daylight conditions.

Mid-Afternoon | Transition Period
As the afternoon progresses, color temperature gradually softens to approximately 3200K. Subtle cooler tones begin to fade, creating a balanced environment that reduces visual fatigue and supports sustained focus.

5:00 – 6:00 PM | Social Hour
Lighting warms back to 2700K, creating a relaxed and welcoming ambiance. Accent lighting introduces richer tones to encourage conversation and a more social atmosphere as the day winds down.

Evening | Relax + Unwind
The space transforms into a comfortable, lounge-like setting. Light levels are dimmed and maintained at warm tones, similar to candlelight, while layered accent lighting enhances depth and mood—ideal for informal gatherings and end-of-day relaxation.

ELITE LIGHTING’S TUNABLE WHITE WITH SMART WHITE TECHNOLOGY

Architectural Lighting Can Be Provided with a Variety of Dimming & Control Options:

ELITE-CONNECT 0-10V. (EC-WC-TWH-HW-MVOLT)

Hard Wired Wall-Mount Controller to controls CCT Tuning and Intensity.
