Signify Controls for Elite Downlights, Linear Slot, Linear Lighting, Troffers and Flat Panels
| Part Number (Installed on Elite Luminaire) |
Product Image | Description | Luminaire Compatible and Ready to Use with the Following Sensors and Controls | Specifications |
| XSR-SNS211 MC |  |
EasySense fixture-mount sensor | Manufacturer Website |
Elite Linear High Bay
(CB2-LED)LED High Bay |
(CB2-CPA-LED)LED High Bay |
(CB3-LED)LED High Bay |
(CB4-LED)LED High Bay |
(CB6-LED)LED High Bay |
(CB12-LED)LED High Bay |
Signify Controls for Elite Linear High Bay
| Part Number (Installed on Elite Luminaire) |
Product Image | Description | Luminaire Compatible and Ready to Use with the Following Sensors and Controls | Specifications |
| XSR-SNH211 MC |  |
EasySense fixture-mount HIGHBAY sensor | Manufacturer Website |
Features |
Benefits |
| • Occupancy sensing, daylight harvesting and task tuning in one device • Scene setting and occupancy sharing • Compact size, 2-wire connection • Operates with Philips Advance Xitanium SR LED drivers and qualified wireless switches • Configuration of sensor parameters– if desired – using NFC or IR via intuitive Android-based Philips field apps • DLC qualified: Listed on the QPL for Networked Lighting Controls |
• No server/gateway required • Combines functionality to reduce need for multiple components • Quick task tuning in the field to optimize light and power levels • Enables auto-off/manual-on and auto-off/ partial-on application • Cost-effective solution for energy-savings and code-compliancy strategies • Configuration and commissioning from the floor |

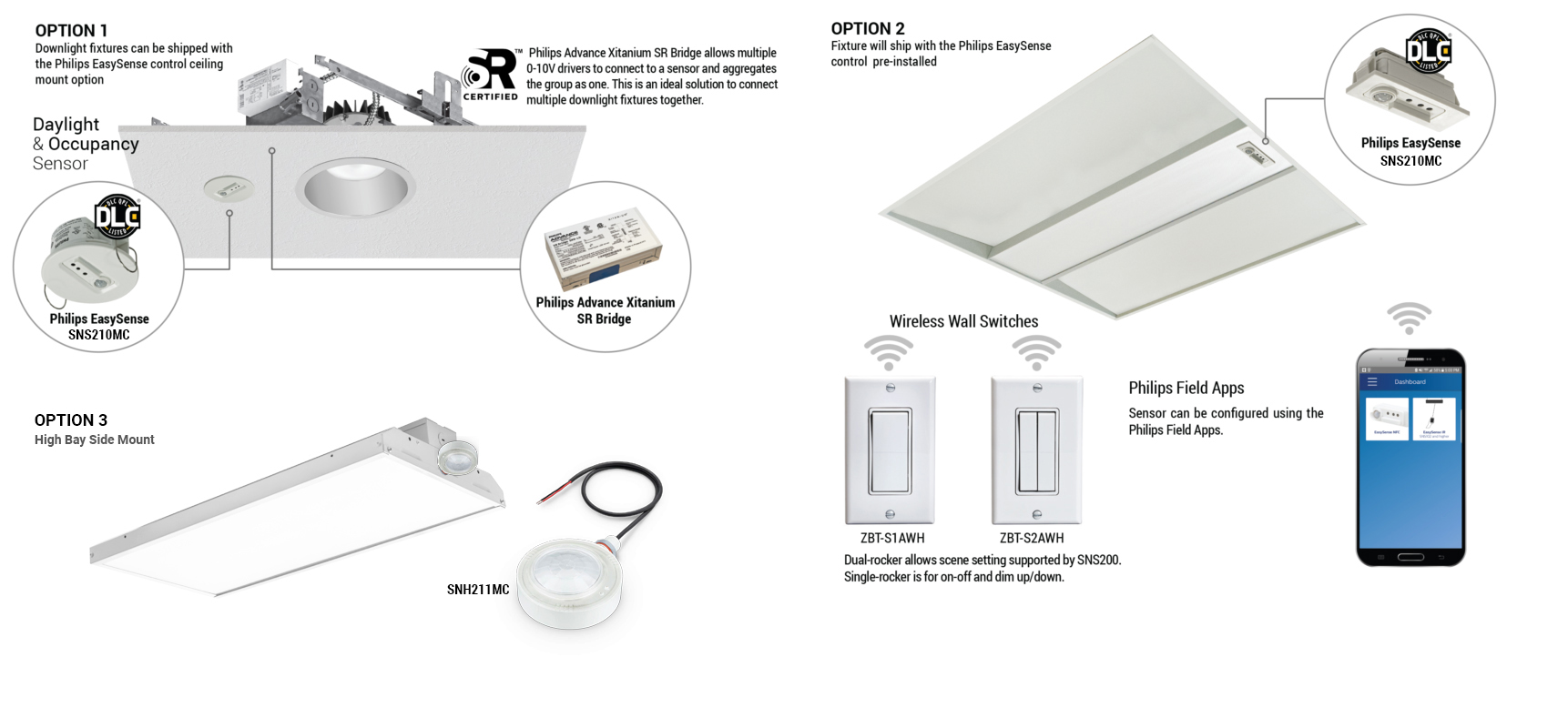

SIGNIFY Control Options
| Part Number (Installed on Elite Luminaire) |
Protocol | Compatible Networks | Occupancy & Daylight | Temperature Reporting | Communication to Luminaire | Luminaire Compatible and Ready to Use with the Following Sensors and Controls |
| XSR-SNS211 MC
EasySense fixture-mount sensor |
Zigbee | Easysence | X | Wireless | ZBT-S1AWH, ZBT-S2AWH | |
| XSR-SNH211 MC
EasySense fixture-mount HIGHBAY sensor |
Zigbee | Easysence | X | Wireless | ZBT-S1AWH, ZBT-S2AWH | |
| XSR
Xitanium SR Linear Programmable LED Drivers |
Zigbee | Easysence | X | Wireless | SNS211 MC-CMP – EasySense fixture-mount HIGHBAY sensor |
Philips Field Apps (Android-based app available on Google Play) allow programming of occupancy/daylight sensing parameters and fine-tuning of lumen levels during installation. This is easily done through two available features, EasySense NFC ( Near Field Communication) for programming during installation when the smart phone can be placed next to the driver, and EasySense IR (Infrared) for programming from floor level. Advance grouping to applicable wireless switches can also be accomplished from floor level.
 |
There are several lighting parameters that can be controlled through the Philips Field Apps:
Occupancy based control (on/off) Daylight based control (on/off) LED Indicator (on/off) Occupancy mode: auto-on/off, manual-on/off, or manual-on/auto-off Field task level: 5-100% Eco-on level: 5-100% Background level: 0-100% Hold time: 30 seconds to 60 minutes Prolong time: 0 minutes to infinity Grace fading time: 0 to 25 seconds. |
Elite Lighting + Signify Control Options
| Signify Part N. | Product Image | Description | Link to Signify Spec. |
| SNS211 MC |  |
EasySense fixture-mount sensor | Spec sheet |
| SNS211 MC-CMP |  |
EasySense fixture-mount sensor | Spec sheet |
| SNH211 MC |  |
EasySense fixture-mount HIGHBAY sensor | Spec sheet |
| OTi50/120-277/1A4 DIM-1L AUXG2 |  |
OPTOTRONIC Linear Programmable LED Drivers | Spec sheet |
| XI040C110V054VPT1 |  |
Xitanium SR Linear Programmable LED Drivers | Spec sheet |
