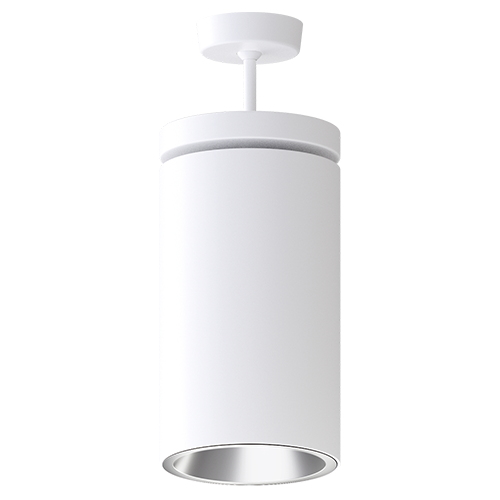

8 Inch Architectural High Lumen LED Cylinder
- Light Source: LED
- Aperture Size: 8 inch
- Lumens: Up to 24000 Lumens
- Technology: High Performance, Smart White (Tunable White), Smart Dim (Dims to Warm)
- CCT: 27K, 30K, 35K, 40K, 50K
SCH8-HL-LED-PM
SCH8-HL-LED-PM
8 Inch Architectural High Lumen LED Cylinder
Dynamic Platforms and Technologies:
Smart White (Tunable White)
SMART WHITE – Tunable White with Smart White Technology allows the tuning of luminaires to mimic the natural color patterns throughout the day, enhancing interior office space, hospitality, and architectural elements. Tuning of intensity and color in classrooms enables a diversification in student activities, while the use of tunable white technology in healthcare stimulates circadian rhythm, accelerating the healing process. Complementing colors and textures in retail merchandising also has an impact on sales, utilizing the technology to adjust colors throughout the season. A CRI of 90+ is standard, and available on all three platforms. Elite Platform (50K-27K), Lumenetix Platform (80K-16K) and LED Engin Platform (65K-18K)
Smart Dim (Dims to Warm)
SMART DIM – Dims to Warm with Smart Dim Technology simulates traditional incandescent halogen lighting through dimming, while providing the energy efficiency, high performance and longevity of LED luminaires. When the luminaire dims to warm, it makes a smooth transition across the black body radiator curve. Starting with a 100% lumen output at 3000K, down to a 1% lumen output at 1800K, and maintaining a constant CRI of 90+. It results in rich amber tones as the light dims, encouraging relaxation. An ideal source for hospitality, residential, and assisted living applications.
High Performance
A highly sustainable and ultra-efficient architectural LED Cylinder that provides even, glare-free illumination. Available in a range of mountings, finishes, distributions, and lumen packages, it is ideally suited for use in corporate office space, hospitality, healthcare, commercial, academic, churches, airports and retail merchandising.
LEGRAND Control Options
| Part Number (Installed on Elite Luminaire) |
Protocol | Compatible Networks | Occupancy & Daylight | Temperature Reporting | Communication to Luminaire | Luminaire Compatible and Ready to Use with the Following Sensors and Controls |
| LMFC-011/LMFC-RJ-50-24
ON/OFF/0-10V dimming fixture controller WITH DLM cable connector whip with one RJ45 port and 24” leads; fits 1/2” KO; white |
DLM | DLM | Wired | DLM | ||
| LMFC-011/LMFC-2RJ
ON/OFF/0-10V dimming fixture controller WITH DLM cable connector whip with two RJ45 ports and 24” leads; fits rectangular opening; grey |
DLM | DLM | Wired | DLM | ||
| FS-PPV2
Fixture Power Pack w/NO/NC relay w/RJ45 receptacle |
Wireless | FS-205 FS-305RC – PIR Low Voltage Fixture Mount Sensor Open Collector Output |
||||
| LMFI-111
Fixture Interface, 120-277V, 1-10V DIMMING, Power to LMFS-601 |
DLM | DLM | Wireless | MFS-601-W – Integrated Fixture Sensor & Controller | ||
| ELDODALI-.1
DALI-2 ‘Dim to Dark’ LED Driver |
DALI | Wireless | MFS-601-W – Integrated Fixture Sensor & Controller | |||
| DIM10-AUX
0-10V dimming LED Driver with AUX output |
Zigbee | Encelium X Light Management System | Wireless | EN-CLM-PIR-DD-ZB – SensiLUM Wireless Integrated Sensor CLM DIM – CLM Connected Lighting Module |
||
| SIM
Sensor Interface Module (SIM) |
Zigbee | Encelium X Light Management System | X | Wireless | WCMS – Wireless Ceiling Mount Passive Infrared (PIR) and Photo Sensors | |
| DALI-DEXAL
DALI Dimming LED Driver with DEXAL® Technology |
DALI | Encelium X Light Management System | Wireless | CLM DIM – CLM Connected Lighting Module |
LUTRON Control Options
| Part Number (Installed on Elite Luminaire) |
Protocol | Compatible Networks | Occupancy & Daylight | Temperature Reporting | Communication to Luminaire | Luminaire Compatible and Ready to Use with the Following Sensors and Controls |
| FCJS-010
Vive PowPak Dimming Module with 0–10 V- Control |
0-10V protocol | ECOSYSTEM | X | Wired | Lutron VIVE | |
| FCJS-ECO
Vive PowPak Dimming Module with ECOSYSTEM- Control |
ECOSYSTEM | ECOSYSTEM | X | Wired | Lutron VIVE | |
| XSR-A-WN-D01-RF-WH
Athena wireless node |
0-10V drivers or DALI-2 drivers | ECOSYSTEM | X | Wired | Lutron Athena | |
| DIM10-AUX
0-10V dimming LED Driver with AUX output |
A-WN-D01-OCC-WH A-WN-D01-RF-WH |
|||||
| LDE1
Hi-lume 1% EcoSystem LED Driver with Soft-on, Fade-to-Black |
ECOSYSTEM | ECOSYSTEM | X | Wired | ECOSYSTEM | |
| L3DA
Hi-lume 1% EcoSystem/3-Wire L3D Driver Overview |
EcoSystem or 3-wire dimming protocol | ECOSYSTEM | X | Wired | ECOSYSTEM | |
| PEQ01UVN
Hi-lume Premier 0.1% EcoSystem LED Driver |
ECOSYSTEM | ECOSYSTEM | X | Wired | ECOSYSTEM |
SIGNIFY Control Options
| Part Number (Installed on Elite Luminaire) |
Protocol | Compatible Networks | Occupancy & Daylight | Temperature Reporting | Communication to Luminaire | Luminaire Compatible and Ready to Use with the Following Sensors and Controls |
| XSR
Xitanium SR Linear Programmable LED Drivers |
Zigbee | Easysence | X | Wireless | SNS211 MC-CMP – EasySense fixture-mount HIGHBAY sensor |
ENLIGHTED Control Options
| Part Number (Installed on Elite Luminaire) |
Protocol | Compatible Networks | Occupancy & Daylight | Temperature Reporting | Communication to Luminaire | Luminaire Compatible and Ready to Use with the Following Sensors and Controls |
| CU-4E-FMH
Fixture Mount Control Unit 100-277V; 5A |
RF radio frequancy | Enlighted | X | X | Wireless | SU-5E-IoT – Micro Sensor, 8-pin SU-5E-CL – Micro Sensor, 8-pin SU-5E-IoT-UPG – Micro Sensor, 8-pin SU-5S-H-IoT – High Bay Sensor, 8-pin SU-5S-H-CL – High Bay Sensor, 8-pin SU-CL-IoT-UPG – High Bay Sensor, 8-pin SU-5S-HRW-IoT – Ruggedized High Bay, 8-pin SU-5S-HRW-CL – Ruggedized High Bay, 8-pin SU-5E-LR-IoT – Low Bay Ruggedized Micro Sensor SU-5E-LR-CL – Low Bay Ruggedized Micro Sensor SU-5E-LR-UPG – Low Bay Ruggedized Micro Sensor |
| XSR
Xitanium SR Linear Programmable LED Drivers |
DALI | KIT-SU-5E-DL-CL – SU-5E-CL sensor with 2-wire/DALI long adapter cable KIT-SU-5E-DL-IOT – SU-5E-CL sensor with 2-wire/DALI long adapter cable KIT-SU-5E-D-IOT – KIT: SU-5E sensor with 2-wire/DALI adapter cable for IoT KIT-SU-5E-D-CL – KIT: SU-5E-CL sensor with 2-wire/DALI adapter cable |
||||
| EM-BOD-GTD
EM-BOD-GTD |
||||||
| UL924-FD-BSR-120V
UL924 Emergency Bypass / Shunt Relay |
||||||
| UL924-FD-BSR-208V-277V
UL924 Emergency Bypass / Shunt Relay |
ENCELIUM Control Options
| Part Number (Installed on Elite Luminaire) |
Protocol | Compatible Networks | Occupancy & Daylight | Temperature Reporting | Communication to Luminaire | Luminaire Compatible and Ready to Use with the Following Sensors and Controls |
| SIM
Sensor Interface Module (SIM) |
Zigbee | Encelium X Light Management System | X | Wireless | WCMS – Wireless Ceiling Mount Passive Infrared (PIR) and Photo Sensors |
CASAMBI Control Options
| Part Number (Installed on Elite Luminaire) |
Protocol | Compatible Networks | Occupancy & Daylight | Temperature Reporting | Communication to Luminaire | Luminaire Compatible and Ready to Use with the Following Sensors and Controls |
| DIMTR-CBU-TED-LR
Bluetooth-controlled trailing edge dimmer |
BLE | Casambi | Wireless | CASAMBI Connected Lighting Module | ||
| DIM10-CBU-ASD
Bluetooth control unit for LED drivers |
BLE | Casambi | Wireless | CASAMBI Connected Lighting Module | ||
| DALI-DEXAL-CBU-DCS
Bluetooth controllable DALI controller |
BLE | Casambi | Wireless | CASAMBI Connected Lighting Module | ||
| DIM10-AUX
0-10V dimming LED Driver with AUX output |
BLE | Casambi | Wireless | CASAMBI Connected Lighting Module | ||
| SALVADOR SL-3016
DALI Dimming Power pack |
BLE | Casambi | Wireless | CASAMBI Connected Lighting Module | ||
| DALI-DEXAL
DALI Dimming LED Driver |
BLE | Casambi | Wireless | CASAMBI Connected Lighting Module |
NX CURRENT LIGHTING Control Options
| Part Number (Installed on Elite Luminaire) |
Protocol | Compatible Networks | Occupancy & Daylight | Temperature Reporting | Communication to Luminaire | Luminaire Compatible and Ready to Use with the Following Sensors and Controls |
| NXFM2-1R2D-O-UNV
NX Fixture Module, Offset, 1 Relay, 2 0-10V Dimming Channels, 120-347VAC, Blue |
NX | NX Distributed Intelligence | X | Wired | NX Distributed Intelligence | |
| DIM10-AUX
WASP Bluetooth® Sensor with Daylighting, LowTemp/Watertight/Outdoor, End Mnt, 0-10V Dimming, 1 SPST Output, 120-480VAC |
LEVITON Control Options
| Part Number (Installed on Elite Luminaire) |
Protocol | Compatible Networks | Occupancy & Daylight | Temperature Reporting | Communication to Luminaire | Luminaire Compatible and Ready to Use with the Following Sensors and Controls |
| ZL027-N0W
Power Control Module Intellect™ |
Zigbee | Intellect | X | Wireless | ZLDNK-01W, ZLDNK-08W, CKDNK-8Ey | |
| DIM10-AUX/ZLS05
Solo PIR Occupancy Sensor with Daylight Harvesting, Intellect |
ZLS0R remote control | X | Wireless | ZLS0R remote control | ||
| DIM10-AUX/ZLS10
Solo PIR Sensor, Fixture Integrated |
ZLS0R remote control | X | Wireless | ZLS0R remote control | ||
| DIM10-AUX
0-10V dimming LED Driver with AUX output |
A-WN-D01-OCC-WH A-WN-D01-RF-WH |
