LOOP-OPF-SQ-LED

Multi-CCT/Square Open Frame LED Pendant – Direct Light
High PerformanceLED
  • CCT: 3000K/ 3500K / 4000K
  • CRI: 90+
  • Voltage: 120-277 DIM10-MVOLT
  • Power: 35W, 55W, 75W
  • Lumens: 3500L, 5500L, 7500L
  • Sizes: 23” X 23”, 35” X 35”, 47” X 47”
  • IP Rated: IP40
  • Color: Black, White, Custom RAL

High PerformanceLED

Dynamic Platforms and Technologies:

High Performance

High Performance

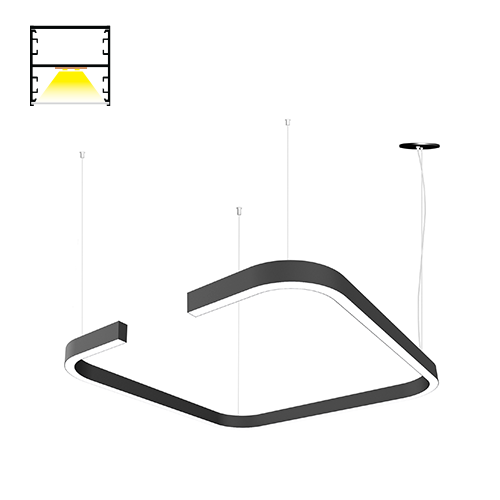

The LOOP Square Open Frame LED Suspended Direct luminaire is defined by its open-sidedprofile, enabling a flexible and modular approach to architectural lighting. The intentionalopening allows multiple fixtures to interconnect, overlap, or nest within one another—creatingdynamic compositions and continuous lighting forms.Built as a single extruded aluminum profile, the luminaire is available in 2.3” W × 2.3” H. Theopen segment, ranging from 6” to 12” depending on fixture size, is paired with a flexiblepolycarbonate diffuser to maintain uniform, uninterrupted illumination while preserving theintegrity of the form.Available in three different sizes and three lumen outputs, for a variety of design options. Aninternal driver and adjustable CCT switch inside the profile allow for versatile color temperaturetransitions during or after installation, to suit different atmospheres.Side canopy mounting option available with adjustable cords that allow for playful positioningat various angles, either individually or in group or “cluster” configurations. Available in classicblack or white finishes, as well as custom RAL colors, to seamlessly complement any interiorstyle. Ideal for transforming office, commercial, lobby, and hospitality spaces into an artfullighting experience.

Downloadable Files:

Spec Sheets

LOOP-OPF-SQ-LED High Performance
