LB8000-16-FLX-ST

Wall-to-Wall / Floor-to-Ceiling Multi-Canopy Double-Sided Flex Neon LED Strip Light
LED
  • Light Source: LED
  • CCT: 27K, 30K, 35K, 40K, 50K, 60K
  • CRI: 90+
  • LEDs/ft: 61
  • Cutting Length: 0.19″
  • Width: 0.71″ (18 mm)
  • Power W/Ft: 3.1
  • Voltage: 24
  • Lumens/Watt: 45
  • Max. Run: 16 Ft
  • IP: 54
  • Max Lumens: 140 lumens/ft
  • White: 140 lumens/ft
  • Red: None lumens/ft
  • Green: None lumens/ft
  • Blue: None lumens/ft
  • RGB: None lumens/ft
  • RGBW: None lumens/ft
  • RGBWTH: None lumens/ft

LED

Dynamic Platforms and Technologies:

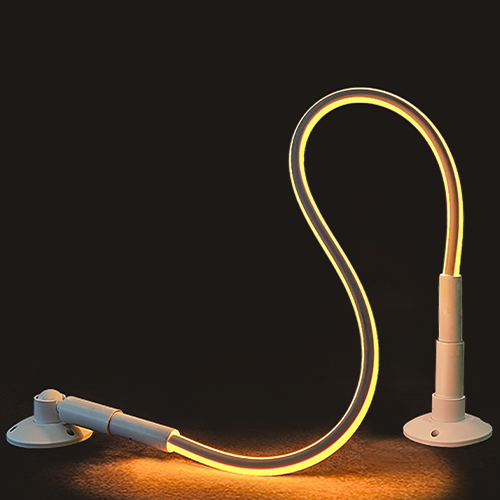

FLEXILINE is a double-sided silicone flex neon LED system for architectural lighting applications. It provides 360° hemispheric half-cut distribution, with a center line that separates the two luminous sides while preserving uniform output. The system connects through a single or multi-outlet canopy (up to six outputs) to support wall-to-wall or ceiling-to-wall 3D installations. An internal steel support wire allows runs up to 16 feet without sagging. Rated IP54 and operating at 24V, FLEXILINE offers a 2700K–6000K color temperature range, delivering reliable illumination for ambient, task, or decorative use across ceilings, walls, and transitional spaces.

Downloadable Files:

Spec Sheets

LB8000-16-FLX-ST High Performance
