High PerformanceSmart Dim (Dims to Warm)LEDBABAA

Dynamic Platforms and Technologies:

Smart Dim (Dims to Warm)

Smart Dim (Dims to Warm)

SMART DIM – Dims to Warm with Smart Dim Technology simulates traditional incandescent halogen lighting through dimming, while providing the energy efficiency, high performance and longevity of LED luminaires. When the luminaire dims to warm, it makes a smooth transition across the black body radiator curve. Starting with a 100% lumen output at 3000K, down to a 1% lumen output at 1800K, and maintaining a constant CRI of 90+. It results in rich amber tones as the light dims, encouraging relaxation. An ideal source for hospitality, residential, and assisted living applications.

High Performance

High Performance

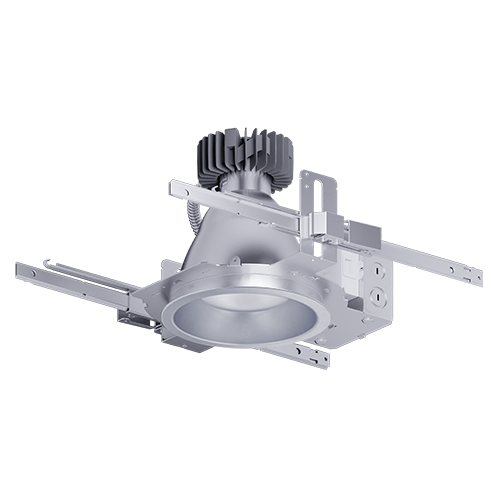

7 Inch LED dedicated Architectural New Construction Downlight with integral LED heat management casting and driver (installed on junction box). Available in 800 lumens, 1100 lumens & 1500 lumens. Lighting is smooth and comfortable while using 50% less energy than the common 26W & 32W CFL downlight. Plus the eco-friendly MAXILUME LED system features 70% lumen maintenance at 50,000hrs of life, with Energy Star and California Title 24 (compliances pending). Available with downlight, wall wash, wet location, and decorative trim options.

Downloadable Files:

Spec Sheets

HV7-LED High Performance

IES Files

HV7-LED High Performance


Compatible Trims



Missing Photo

LED-7101

7 Inch Reflector

Missing Photo

LED-7102

7 Inch Baffle with Reflector

Missing Photo

LED-7107

7 Inch Wall Wash Reflector

Missing Photo

LED-7109

7 Inch Deco Glass Reflector

Missing Photo

LED-7110

7 Inch Double Ring Glass

Missing Photo

LED-7112

7 Inch Baffle with Frosted Glass Lens

Missing Photo

LED-7113

7 Inch Baffle with Tempered Clear Glass

Missing Photo

LED-7114

7 Inch Reflector with Frosted Glass Lens

Missing Photo

LED-7115

7 Inch Reflector with Tempered Clear Glass

Missing Photo

LED-7125

7 Inch Central Etched Float Glass

Missing Photo

LED-7128

7 Inch Deco Glass Reflector with Aluminum Disc
