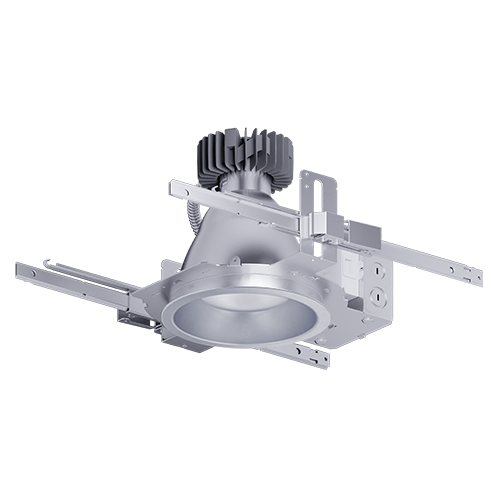

HV7-LED

7″ Architectural New Construction Downlight

Light Source: LED
Aperture Size: 7 inch
Lumens: Up to 1500 Lumens
Technology: High Performance, Smart Dim (Dims to Warm)
CCT: 27K, 30K, 35K, 40K, 50K

SKU: 8e469e4fb9a8 Categories: 120-277V, 1201L-2000L, 120V, 277V, 27K, 30K, 347V, 35K, 40K, 50K, 7 inch, 85+, 90+, 901L-1200L, 98+, Architectural/Specification Downlighting, baba, babaa, Baffle, Damp Location, Downlight, Downlighting, High Performance, Interior Lighting, LastUpdate, LED, Maxilumeled, Medium, New Construction, Reflector, Round, smart dim (dims to warm), Up to 900L, Wall Wash, Wet Location Tags: 120-277V, 1201L-2000L, 1201L2000L, 120277V, 120V, 277V, 27K, 30K, 347V, 35K, 40K, 50K, 7 inch, 7inch, 85, 90+, 901L-1200L, 901L1200L, 98+, Architectural/Specification Downlighting, ArchitecturalSpecificationDownlighting, BABAA, Baffle, Damp Location, DampLocation, Downlight, Downlighting, High Performance, HighPerformance, HV7-LED, HV7LED, Indoor, Indoor Lighting, IndoorLighting, Interior Lighting, InteriorLighting, LED, Maxilumeled, Medium, New Construction, NewConstruction, Recessed Housing, Recessed Light, RecessedHousing, RecessedLight, Reflector, Round, Smart Dim (Dims to Warm), SmartDim(DimstoWarm), Up to 900L, Upto900L, Wall Wash, WallWash, Wet Location, WetLocation

HV7-LED

7″ Architectural New Construction Downlight

Dynamic Platforms and Technologies:

Smart Dim (Dims to Warm) Technology

Product Overview

Product Overview

Smart Dim (Dims to Warm)

SMART DIM – Dims to Warm with Smart Dim Technology simulates traditional incandescent halogen lighting through dimming, while providing the energy efficiency, high performance and longevity of LED luminaires. When the luminaire dims to warm, it makes a smooth transition across the black body radiator curve. Starting with a 100% lumen output at 3000K, down to a 1% lumen output at 1800K, and maintaining a constant CRI of 90+. It results in rich amber tones as the light dims, encouraging relaxation. An ideal source for hospitality, residential, and assisted living applications.

High Performance Technology

Product Overview

Product Overview

High Performance

7 Inch LED dedicated Architectural New Construction Downlight with integral LED heat management casting and driver (installed on junction box). Available in 800 lumens, 1100 lumens & 1500 lumens. Lighting is smooth and comfortable while using 50% less energy than the common 26W & 32W CFL downlight. Plus the eco-friendly MAXILUME LED system features 70% lumen maintenance at 50,000hrs of life, with Energy Star and California Title 24 (compliances pending). Available with downlight, wall wash, wet location, and decorative trim options.

Downloadable Files:

Compatible Trims

LED-7101

7 Inch Reflector

LED-7102

7 Inch Baffle with Reflector

LED-7107

7 Inch Wall Wash Reflector

LED-7109

7 Inch Deco Glass Reflector

LED-7110

7 Inch Double Ring Glass

LED-7112

7 Inch Baffle with Frosted Glass Lens

LED-7113

7 Inch Baffle with Tempered Clear Glass

LED-7114

7 Inch Reflector with Frosted Glass Lens

LED-7115

7 Inch Reflector with Tempered Clear Glass

LED-7125

7 Inch Central Etched Float Glass

LED-7128

7 Inch Deco Glass Reflector with Aluminum Disc

HV7-LED
