High PerformanceSmart Dim (Dims to Warm)LED

Dynamic Platforms and Technologies:

Smart Dim (Dims to Warm)

Smart Dim (Dims to Warm)

SMART DIM – Dims to Warm with Smart Dim Technology simulates traditional incandescent halogen lighting through dimming, while providing the energy efficiency, high performance and longevity of LED luminaires. When the luminaire dims to warm, it makes a smooth transition across the black body radiator curve. Starting with a 100% lumen output at 3000K, down to a 1% lumen output at 1800K, and maintaining a constant CRI of 90+. It results in rich amber tones as the light dims, encouraging relaxation. An ideal source for hospitality, residential, and assisted living applications.

High Performance

High Performance

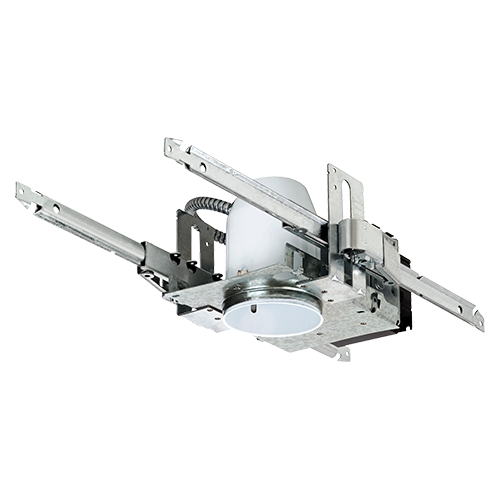

4 Inch Architectural NON-IC housing for use with RL400 LED series LED Module trims. Designed for new construction installations and suitable for use in non-insulated covered ceilings. The HLD4-AT housing is engineered with a unique ‘EZ-connect’ wiring system, that when used with the RL400 trim, with Energy Star and California Title 24 (compliances pending). The unique EZ-connect system also meets other state and national regulatory mandates. LED Module connects effortlessly to housing, virtually eliminating mis-wiring and potential shock hazards. Available with downlight, wall wash, wet location, and decorative trim options.

Downloadable Files:

Spec Sheets

HLD4-AT High Performance

IES Files

HLD4-AT High Performance


Compatible Trims



Missing Photo

REL431-ML-CCT

4″ Economy LED Retrofit Module with Multi-Lumen/CCT

Missing Photo

REL433

4″ Economy LED Retrofit Downlight Baffle Trim

Missing Photo

REL437

4″ Economy LED Retrofit Module

Missing Photo

REL437-CCT

4″ Economy LED Retrofit Module with Multi-CCT

Missing Photo

REL437-ML-CCT

4″ Economy LED Retrofit Module with Multi-Lumen/CCT

Missing Photo

RL403

4 Inch LED Retrofit 12, 24, 38 Degrees Beam Angle

Missing Photo

RL407

4 Inch Reflector LED Retrofit Module

Missing Photo

RL411

4 Inch Baffle Wall Wash LED Retrofit Module

Missing Photo

RL422

4 Inch Reflector Wall Wash LED Retrofit Module

Missing Photo

RL427

4 Inch LED Retrofit Die-Cast Aluminum Lensed Reflector

Missing Photo

RL428

4 Inch LED Retrofit Module

Missing Photo

RL428-CCT

4″ LED Retrofit Module w/5-Color CCT Select

Missing Photo

RL429

4 Inch LED Reflector Retrofit Lighting Module

Missing Photo

RL430

4 Inch Baffle LED Retrofit Module

Missing Photo

RL431

4 Inch Universal LED Module

Missing Photo

RL431-CCT

4 Inch Universal LED Module

Missing Photo

RL432

4 Inch Non-conductive LED Retrofit Module

Missing Photo

RL435

4 Inch LED Retrofit Die-Cast Aluminum Lensed Baffle

Missing Photo

RL461

4 Inch Round Adjustable LED Retrofit Module

Missing Photo

RL465

4 Inch Adjustable LED Retrofit Module

Missing Photo

RL465-CCT

4 Inch Adjustable LED Retrofit Module with Selectable CCT

Missing Photo

RL470

4 Inch Universal Surface Mount LED Module

Missing Photo

RL470-CCT

4 Inch Universal Surface Mount LED Module

Missing Photo

RL481

4 Inch Square Adjustable LED Retrofit Module

Missing Photo

RL485

4 Inch LED Retrofit Square Trim Downlight

Missing Photo

RL485-CCT

4 Inch LED Retrofit Square Trim Downlight

Missing Photo

RL487-CCT

4 Inch LED Baffle Retrofit Square Trim Downlight
