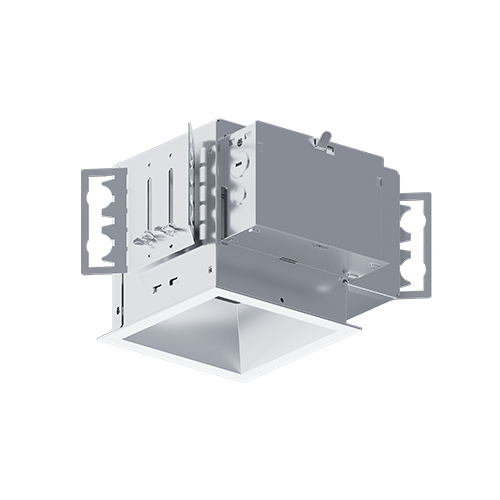

4″ Architectural CFL Square Downlight (Open, wall wash, wet location, decorative trim options)
- Light Source: CFL
- Aperture Size: 4 inch
- CCT: 22K
HH4SQPL
HH4SQPL
4″ Architectural CFL Square Downlight (Open, wall wash, wet location, decorative trim options)
Dynamic Platforms and Technologies:
Available with downlight, wall wash, wet location, and decorative trim options.
LEGRAND Control Options
| Part Number (Installed on Elite Luminaire) |
Protocol | Compatible Networks | Occupancy & Daylight | Temperature Reporting | Communication to Luminaire | Luminaire Compatible and Ready to Use with the Following Sensors and Controls |
| LMFC-011/LMFC-RJ-50-24
ON/OFF/0-10V dimming fixture controller WITH DLM cable connector whip with one RJ45 port and 24” leads; fits 1/2” KO; white |
DLM | DLM | Wired | DLM | ||
| LMFC-011/LMFC-2RJ
ON/OFF/0-10V dimming fixture controller WITH DLM cable connector whip with two RJ45 ports and 24” leads; fits rectangular opening; grey |
DLM | DLM | Wired | DLM | ||
| FS-PPV2
Fixture Power Pack w/NO/NC relay w/RJ45 receptacle |
Wireless | FS-205 FS-305RC – PIR Low Voltage Fixture Mount Sensor Open Collector Output |
||||
| LMFI-111
Fixture Interface, 120-277V, 1-10V DIMMING, Power to LMFS-601 |
DLM | DLM | Wireless | MFS-601-W – Integrated Fixture Sensor & Controller | ||
| ELDODALI-.1
DALI-2 ‘Dim to Dark’ LED Driver |
DALI | Wireless | MFS-601-W – Integrated Fixture Sensor & Controller | |||
| DIM10-AUX
0-10V dimming LED Driver with AUX output |
Zigbee | Encelium X Light Management System | Wireless | EN-CLM-PIR-DD-ZB – SensiLUM Wireless Integrated Sensor CLM DIM – CLM Connected Lighting Module |
||
| SIM
Sensor Interface Module (SIM) |
Zigbee | Encelium X Light Management System | X | Wireless | WCMS – Wireless Ceiling Mount Passive Infrared (PIR) and Photo Sensors | |
| DALI-DEXAL
DALI Dimming LED Driver with DEXAL® Technology |
DALI | Encelium X Light Management System | Wireless | CLM DIM – CLM Connected Lighting Module |
LUTRON Control Options
| Part Number (Installed on Elite Luminaire) |
Protocol | Compatible Networks | Occupancy & Daylight | Temperature Reporting | Communication to Luminaire | Luminaire Compatible and Ready to Use with the Following Sensors and Controls |
| FCJS-010
Vive PowPak Dimming Module with 0–10 V- Control |
0-10V protocol | ECOSYSTEM | X | Wired | Lutron VIVE | |
| FCJS-ECO
Vive PowPak Dimming Module with ECOSYSTEM- Control |
ECOSYSTEM | ECOSYSTEM | X | Wired | Lutron VIVE | |
| XSR-A-WN-D01-RF-WH
Athena wireless node |
0-10V drivers or DALI-2 drivers | ECOSYSTEM | X | Wired | Lutron Athena | |
| DIM10-AUX
0-10V dimming LED Driver with AUX output |
A-WN-D01-OCC-WH A-WN-D01-RF-WH |
|||||
| LDE1
Hi-lume 1% EcoSystem LED Driver with Soft-on, Fade-to-Black |
ECOSYSTEM | ECOSYSTEM | X | Wired | ECOSYSTEM | |
| L3DA
Hi-lume 1% EcoSystem/3-Wire L3D Driver Overview |
EcoSystem or 3-wire dimming protocol | ECOSYSTEM | X | Wired | ECOSYSTEM | |
| PEQ01UVN
Hi-lume Premier 0.1% EcoSystem LED Driver |
ECOSYSTEM | ECOSYSTEM | X | Wired | ECOSYSTEM |
SIGNIFY Control Options
| Part Number (Installed on Elite Luminaire) |
Protocol | Compatible Networks | Occupancy & Daylight | Temperature Reporting | Communication to Luminaire | Luminaire Compatible and Ready to Use with the Following Sensors and Controls |
| XSR
Xitanium SR Linear Programmable LED Drivers |
Zigbee | Easysence | X | Wireless | SNS211 MC-CMP – EasySense fixture-mount HIGHBAY sensor |
ENLIGHTED Control Options
| Part Number (Installed on Elite Luminaire) |
Protocol | Compatible Networks | Occupancy & Daylight | Temperature Reporting | Communication to Luminaire | Luminaire Compatible and Ready to Use with the Following Sensors and Controls |
| CU-4E-FMH
Fixture Mount Control Unit 100-277V; 5A |
RF radio frequancy | Enlighted | X | X | Wireless | SU-5E-IoT – Micro Sensor, 8-pin SU-5E-CL – Micro Sensor, 8-pin SU-5E-IoT-UPG – Micro Sensor, 8-pin SU-5S-H-IoT – High Bay Sensor, 8-pin SU-5S-H-CL – High Bay Sensor, 8-pin SU-CL-IoT-UPG – High Bay Sensor, 8-pin SU-5S-HRW-IoT – Ruggedized High Bay, 8-pin SU-5S-HRW-CL – Ruggedized High Bay, 8-pin SU-5E-LR-IoT – Low Bay Ruggedized Micro Sensor SU-5E-LR-CL – Low Bay Ruggedized Micro Sensor SU-5E-LR-UPG – Low Bay Ruggedized Micro Sensor |
| XSR
Xitanium SR Linear Programmable LED Drivers |
DALI | KIT-SU-5E-DL-CL – SU-5E-CL sensor with 2-wire/DALI long adapter cable KIT-SU-5E-DL-IOT – SU-5E-CL sensor with 2-wire/DALI long adapter cable KIT-SU-5E-D-IOT – KIT: SU-5E sensor with 2-wire/DALI adapter cable for IoT KIT-SU-5E-D-CL – KIT: SU-5E-CL sensor with 2-wire/DALI adapter cable |
||||
| EM-BOD-GTD
EM-BOD-GTD |
||||||
| UL924-FD-BSR-120V
UL924 Emergency Bypass / Shunt Relay |
||||||
| UL924-FD-BSR-208V-277V
UL924 Emergency Bypass / Shunt Relay |
ENCELIUM Control Options
| Part Number (Installed on Elite Luminaire) |
Protocol | Compatible Networks | Occupancy & Daylight | Temperature Reporting | Communication to Luminaire | Luminaire Compatible and Ready to Use with the Following Sensors and Controls |
| SIM
Sensor Interface Module (SIM) |
Zigbee | Encelium X Light Management System | X | Wireless | WCMS – Wireless Ceiling Mount Passive Infrared (PIR) and Photo Sensors |
CASAMBI Control Options
| Part Number (Installed on Elite Luminaire) |
Protocol | Compatible Networks | Occupancy & Daylight | Temperature Reporting | Communication to Luminaire | Luminaire Compatible and Ready to Use with the Following Sensors and Controls |
| DIMTR-CBU-TED-LR
Bluetooth-controlled trailing edge dimmer |
BLE | Casambi | Wireless | CASAMBI Connected Lighting Module | ||
| DIM10-CBU-ASD
Bluetooth control unit for LED drivers |
BLE | Casambi | Wireless | CASAMBI Connected Lighting Module | ||
| DALI-DEXAL-CBU-DCS
Bluetooth controllable DALI controller |
BLE | Casambi | Wireless | CASAMBI Connected Lighting Module | ||
| DIM10-AUX
0-10V dimming LED Driver with AUX output |
BLE | Casambi | Wireless | CASAMBI Connected Lighting Module | ||
| SALVADOR SL-3016
DALI Dimming Power pack |
BLE | Casambi | Wireless | CASAMBI Connected Lighting Module | ||
| DALI-DEXAL
DALI Dimming LED Driver |
BLE | Casambi | Wireless | CASAMBI Connected Lighting Module |
NX CURRENT LIGHTING Control Options
| Part Number (Installed on Elite Luminaire) |
Protocol | Compatible Networks | Occupancy & Daylight | Temperature Reporting | Communication to Luminaire | Luminaire Compatible and Ready to Use with the Following Sensors and Controls |
| NXFM2-1R2D-O-UNV
NX Fixture Module, Offset, 1 Relay, 2 0-10V Dimming Channels, 120-347VAC, Blue |
NX | NX Distributed Intelligence | X | Wired | NX Distributed Intelligence | |
| DIM10-AUX
WASP Bluetooth® Sensor with Daylighting, LowTemp/Watertight/Outdoor, End Mnt, 0-10V Dimming, 1 SPST Output, 120-480VAC |
LEVITON Control Options
| Part Number (Installed on Elite Luminaire) |
Protocol | Compatible Networks | Occupancy & Daylight | Temperature Reporting | Communication to Luminaire | Luminaire Compatible and Ready to Use with the Following Sensors and Controls |
| ZL027-N0W
Power Control Module Intellect™ |
Zigbee | Intellect | X | Wireless | ZLDNK-01W, ZLDNK-08W, CKDNK-8Ey | |
| DIM10-AUX/ZLS05
Solo PIR Occupancy Sensor with Daylight Harvesting, Intellect |
ZLS0R remote control | X | Wireless | ZLS0R remote control | ||
| DIM10-AUX/ZLS10
Solo PIR Sensor, Fixture Integrated |
ZLS0R remote control | X | Wireless | ZLS0R remote control | ||
| DIM10-AUX
0-10V dimming LED Driver with AUX output |
A-WN-D01-OCC-WH A-WN-D01-RF-WH |
Downloadable Files:
Compatible Trims
4601
4604
4607
4614
4615
