22-OD-LED

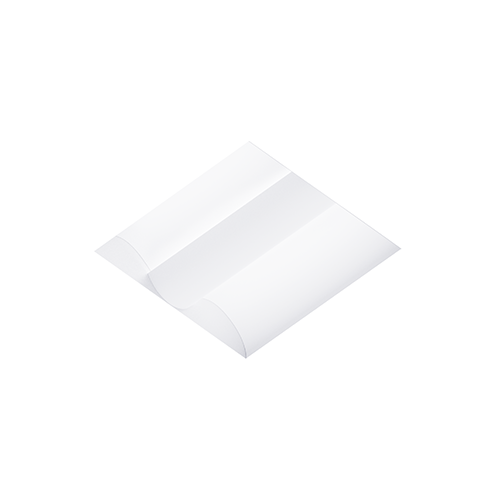

2 X 2 Foot LED Recessed Direct/Indirect Luminaire
High PerformanceSmart White (Tunable White)Smart Dim (Dims to Warm)Smart Hue (RGB + Tunable White)LEDBABAAChicago PlenumQuickShip (Up to 250)
  • Light Source: LED
  • Length: 2×2 feet
  • Lumens: Up to 4000 Lumens
  • Technology: High Performance, Smart White (Tunable White), Smart Dim (Dims to Warm), Smart Hue (RGB + Tunable White)
  • CCT: 30K, 35K, 40K, 50K

High PerformanceSmart White (Tunable White)Smart Dim (Dims to Warm)Smart Hue (RGB + Tunable White)LEDBABAAChicago PlenumQuickShip (Up to 250)

22-OD-LED-xxxxL-DIMMING-VOLTAGE-CCT-CRI
22-OD-LED-4000L-DIM10-MVOLT-40K-85 – Up to 250
22-OD-LED-DIFFUSER – Up to 250

Dynamic Platforms and Technologies:

Smart White (Tunable White)

Smart White (Tunable White)

SMART WHITE – Tunable White with Smart White Technology allows the tuning of luminaires to mimic the natural color patterns throughout the day, enhancing interior office space, hospitality, and architectural elements. Tuning of intensity and color in classrooms enables a diversification in student activities, while the use of tunable white technology in healthcare stimulates circadian rhythm, accelerating the healing process. Complementing colors and textures in retail merchandising also has an impact on sales, utilizing the technology to adjust colors throughout the season. A CRI of 90+ is standard, and available on all three platforms. Elite Platform (50K-27K), Lumenetix Platform (80K-16K) and LED Engin Platform (65K-18K)

Smart Dim (Dims to Warm)

Smart Dim (Dims to Warm)

SMART DIM – Dims to Warm with Smart Dim Technology simulates traditional incandescent halogen lighting through dimming, while providing the energy efficiency, high performance and longevity of LED luminaires. When the luminaire dims to warm, it makes a smooth transition across the black body radiator curve. Starting with a 100% lumen output at 3000K, down to a 1% lumen output at 1800K, and maintaining a constant CRI of 90+. It results in rich amber tones as the light dims, encouraging relaxation. An ideal source for hospitality, residential, and assisted living applications.

Smart Hue (RGB + Tunable White)

Smart Hue (RGB + Tunable White)

RGB + White Technology has a white color tuning range from 8000K to 1650K. RGB color range derived from the primary colors red, green and blue is used to create infinite color options in the RGB palette, adding colors together in varying amounts to create new ones. RGB Tunable White technology enables users to adjust the color temperature, adding gradients of saturated colors. No longer restricted to white light LEDs, lighting designers and architects can manipulate a space with desired hues and shades, altering the color temperature of the room, creating the perfect environment. The use of RGB Tunable White technology in healthcare and assisted living stimulates circadian rhythm, accelerating the healing process. Available in 2 platforms, using Lumenetix and LED Engin components, both maintain a constant CRI of 90+.

High Performance

High Performance

General LED illumination for health care facilities, educational institutions, airports, commercial offices, retail, and many other applications.

Downloadable Files:

Spec Sheets

22-OD-LED High Performance
22-OD-LED-TWH Smart White (Tunable White)
22-OD-LED-WDM Smart Dim (Dims to Warm)
22-OD-LED-RGBW Smart Hue (RGB + Tunable White)

IES Files

22-OD-LED High Performance
22-OD-LED-TWH Smart White (Tunable White)
