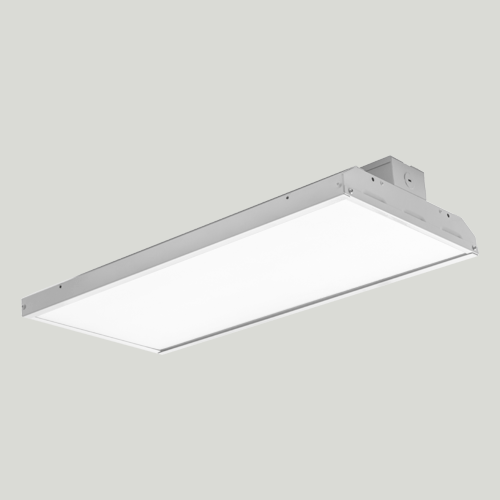

LED High Bay

FEATURES & BENEFITS

Features and Benefits

Occupancy/Vacancy

Sensing turns lights ON when occupants are in a space and OFF when they vacate the space.

Daylight Harvesting

Dims electric lights when daylight is available to light the space.

Scheduling

Provides pre-programmed changes in light levels based on time of day

High-End Trim

Sets the maximum light level based on customer requirements in each space.

Personal Dimming

Control gives occupants the ability to adjust the light level.

Bluetooth® Mesh wireless network (no gateway needed): The system uses built-in Bluetooth mesh communications so there is no central hub or controller to install.
Works with 0-10 V fixtures and standard commercial drivers: Intellicast integrates via 0-10 V dimming or direct fixture controllers, making it compatible with both retrofit and new-construction LED systems.
Zoned and scalable: support for multiple regions: One “region” handles up to ~100 devices (lights) per region, unlimited regions possible.
Manufacturer-integrated control hardware + fixtures: Because Elite lighting makes both fixtures and controllers for this platform, compatibility is assured

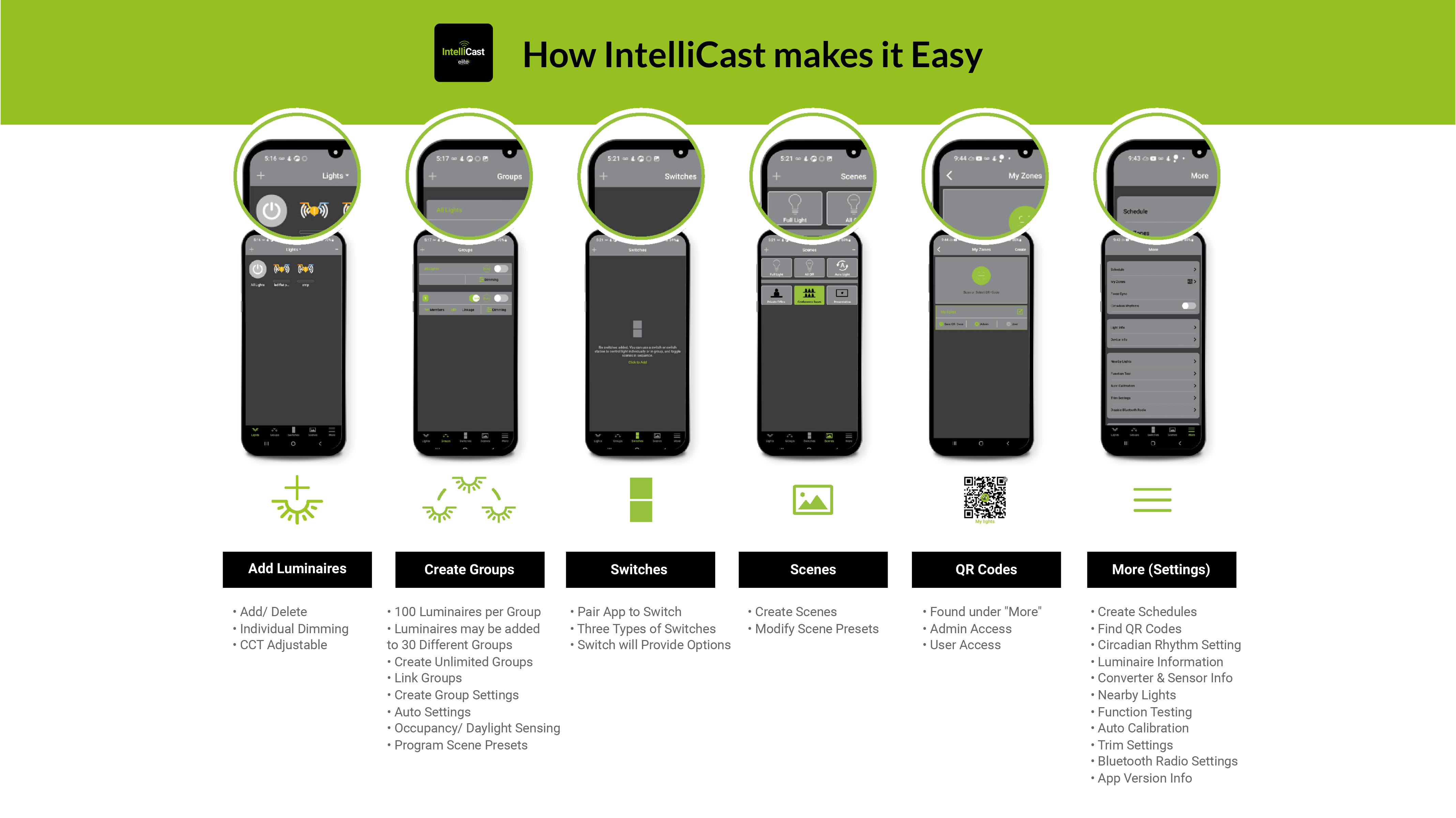

Intuitive smartphone/tablet app commissioning & control: Download the Intellicast app (iOS/Android) and commission in minutes, adjust groups, scenes, schedules, sensors.
Auto mode for “set-and-forget” operation: The system can detect ambient light and motion to manage levels automatically.
Daylight harvesting + occupancy‐based control: Sensors support ambient light measurement and motion/vacancy control.
Minimal control wiring required: Because the control layer is wireless, fewer wires and less conduit are needed.
Rapid commissioning via mobile device & quick-add features: The app supports quick-add of devices, naming and grouping using QR codes or smartphone camera
Minimal on-site wiring and fewer labor hours: Wireless nodes and controllers mean fewer runs, simpler installation logistics.

CHOOSE CONTROLLERS

Intellicast Control System

Item number	Protocol	Features

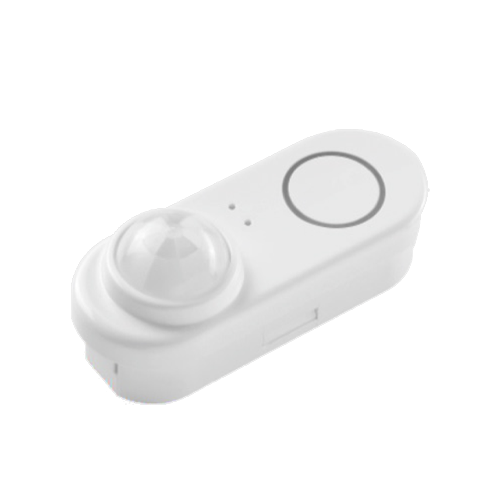

Intellicast Sensor Integrated Bluetooth Sensor	Bluetooth 5.0	The Intellicast Sensor Ready designed for Luminaire Level Lighting Control(LLLC/NLC5) with integrated daylight harvesting and PIR motion sensor which can convert general luminaires into smart lighting fixture. The compact structure is designed for panel, troffer and linear lighting fixtures.

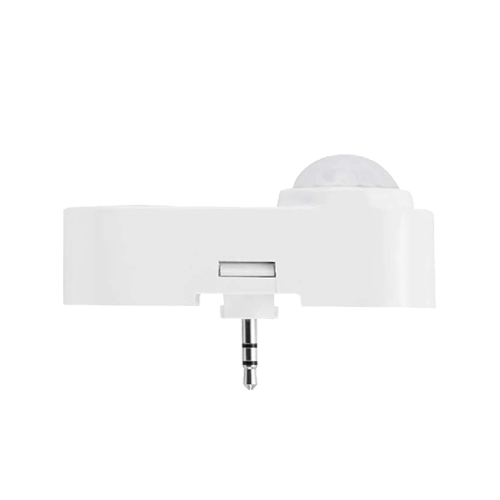

Intellicast Sensor Plug-in Integrated Bluetooth Sensor(plug-in)	Bluetooth 5.0	The Intellicast Sensor Ready designed for Luminaire Level Lighting Control(LLLC/NLC5) with integrated daylight harvesting and PIR motion sensor which can convert general luminaires into smart lighting fixture. The compact structure is designed for panel, troffer and linear lighting fixtures.
IC-BLE-SW5 5-key Bluetooth Wireless IntelliCast Keypad	Bluetooth 5.0	This IntelliCast Bluetooth wireless wall switch is a versatile, batterypowered solution designed for seamless control of IntelliCast devices. It supports multiple functions, including ON/OFF, DIM+/ DIM- for brightness adjustment, AUTO for automated settings, and three customizable scene options. The switch also functions as a remote controller, allowing operation of your IntelliCast system from anywhere within its Bluetooth range, to ensure reliable, secure communication.
IC-BLE-SW5-MVOLT 5-key Bluetooth Wireless IntelliCast Wall Switch	Bluetooth 5.0	This IntelliCast Bluetooth wireless wall switch is a versatile, 120-277V solution designed for seamless control of IntelliCast devices. It supports multiple functions, including ON/ OFF, DIM+/DIM- for brightness adjustment, AUTO for automated settings, and three customizable scene options. This switch is a wall mount only solution.

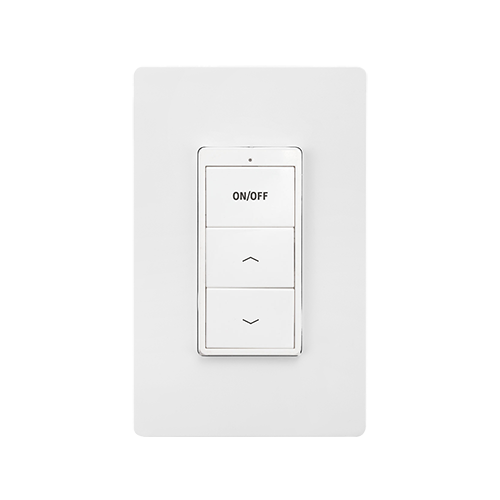

IC-BLE-SW3-3V-WH 3-key Bluetooth Wireless IntelliCast Wall Switch	Bluetooth 5.0	This IntelliCast Bluetooth wireless wall switch is a versatile, 3-key solution designed for seamless control of IntelliCast devices. It supports multiple functions, including ON/ OFF, DIM+/DIM- for brightness adjustment, AUTO for automated settings, and three customizable scene options. This switch is a wall mount only solution.

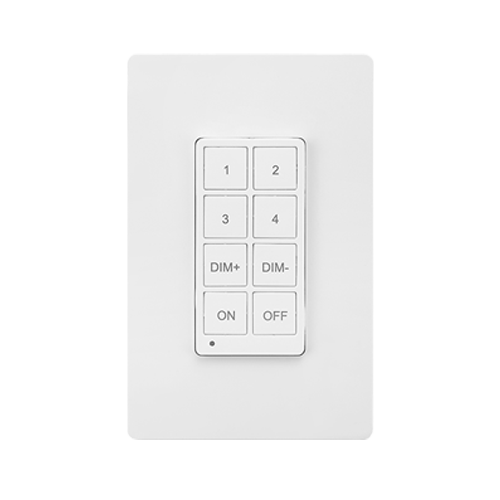

IC-BLE-SW8-3V-WH 8-key Bluetooth Wireless IntelliCast Wall Switch	Bluetooth 5.0	This IntelliCast Bluetooth wireless wall switch is a versatile, 8-key solution designed for seamless control of IntelliCast devices. It supports multiple functions, including ON/ OFF, DIM+/DIM- for brightness adjustment, AUTO for automated settings, and four customizable scene options. This switch is a wall mount only solution.

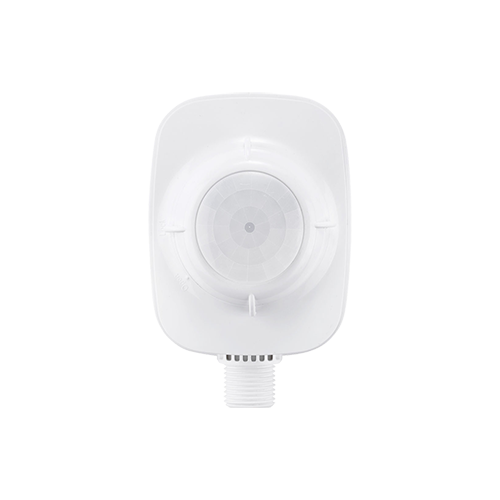

HIGH BAY SENSOR Bluetooth Wireless IntelliCast PIR Side Mount Sensor	Bluetooth 5.0	The AC High Bay PIR Sensor and Controller is compatible to other Intellicast Devices which utilize Bluetooth technology for reliable and secure wireless communication

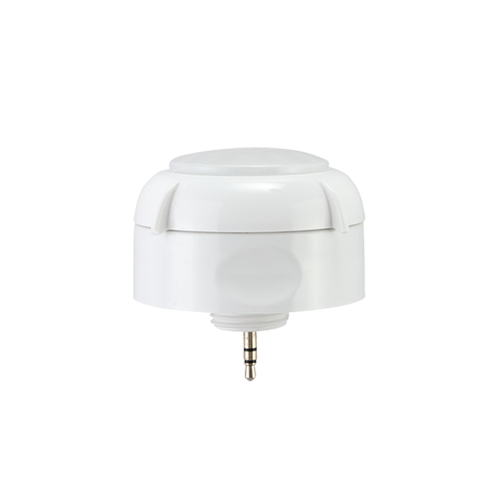

HIGH BAY SENSOR Bluetooth Wireless IntelliCast PIR plug-in	Bluetooth 5.0	Low voltage high bay sensors are ideal for Luminaire Level Lighting Control applications. Featuring integrated daylight harvesting and PIR motion sensors, these sensors are designed for pre-installation in linear high bay or UFO high bay luminaires.

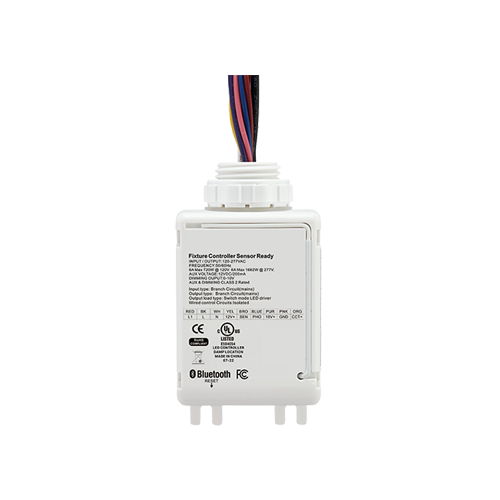

Power Pack Bluetooth Power Pack	Bluetooth 5.0	Transforms high voltage to low voltage as directed by linked sensors, wall switches and other control devices. Connected loads will turn on/ off automatically by paired sensors or manually by a wall switch. AUX, Dimming, and Class 2 rated. Meets NEC 90 minute emergency power requirement.

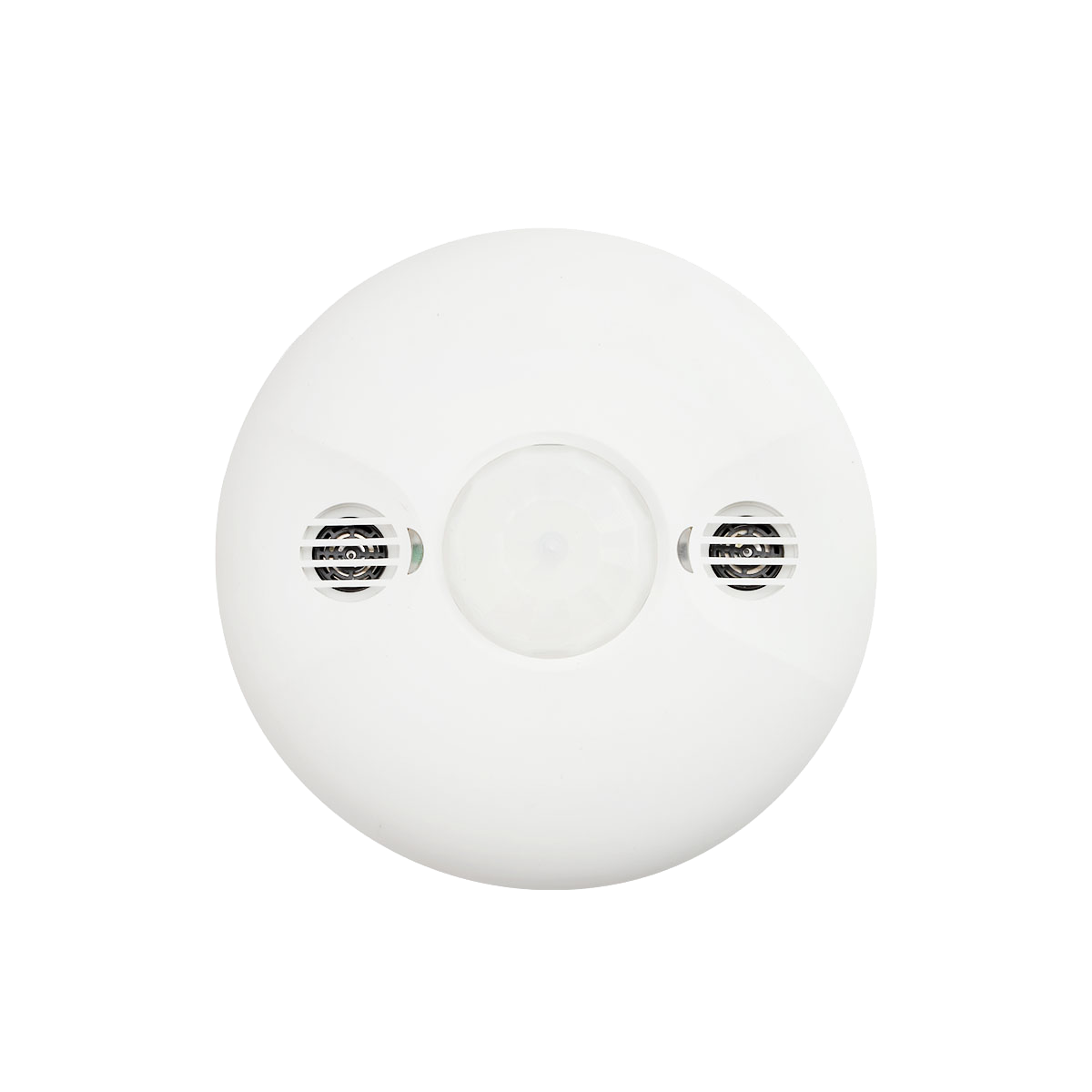

Ceiling Mount Sensor Line Voltage Dual-Tech Ceiling Sensor	Bluetooth 5.0	A line-voltage dual-tech occupancy sensor using PIR and ultrasonic detection for precise, wide coverage. Its photocell with “Hold-OFF” prevents lights from turning on when natural light is adequate. Easily commissioned via app, it works seamlessly with other wireless control devices.
